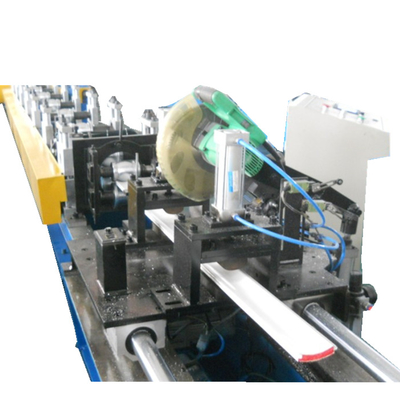

51.5 PU ROLLING SHUTTER DOOR ROLL FORMING MACHINE
Zhongtuo cold rolling forming machinery Supply, Install, Maintain, Service And Repair A Wide Range Of Roller Shutters Roll Forming Machine and within a short period of time it turned out to be one of the most distinguished companies in Security rolling shutters roll forming machine and outer PU Foam Roller Shutter Door Roll Forming Machine industrial branch. we can produce a wide range of industrial doors includes sectional overhead doors and roller shutters and fire roller shutters and security doors also PU Foam Injection Shutter and etc.Steel roller shutters are very versatile and come with various options.PU foam shutter door section which is ideal for showrooms. So we take the following drawing profile for example to show you the PU roller shutter door roll forming machine designed.
Main motor power |
7.5kw |
Hydraulic motor power |
2.2kw |
Voltage |
380v 50hz 3 phrase |
Control system |
PLC |
Feeding thickness |
0.3mm-0.5mm |
Speed |
10-12m/min |
Roller station |
36+1 station |
Shaft diameter |
50 mm |
Shaft material |
45# solid steel |
Roller material |
Gcr 15 steel after quenching processing HRC58-62℃, chrome plated surface |
Drivetrain |
110 Gearbox welded structural steel |
Cutting device |
Servo track cutting |
PU Foaming Unit: Mixer type
PU Raw meterial tank
3T manual decoiler specification:
Item | Specification |
Decoiling Type | Actively Uncoiling Type |
Loading Capacity | 3 Tons |
Loading Width | Max. 700mm |
Coil Inner Diameter | 450-550mm |
Coil Outer Diameter | Max. 1500mm |
Q: Can you customize the machine to your company's specifications?
A: Yes, we can manufacture the machine according to your specifications.
Q: How is the quality?
A: All raw materials are quality controlled. Staffs take care of every detail when handling and packaging. Our quality control department is resonsible for the quality of each product.
Q: Do we have after sales service?
A: Yes, we have after sale service via email, whatsapp, wechat skype and other communication tools.
Q: Does our machine comes with warrenty?
A: Yes, it comes with 1 year warranty.
