Eigenschaften

Technische Daten

Applicable Industries: Building Material Shops, Construction worksÂ , Manufacturing Plant

Showroom Location: Canada, United Kingdom, Viet Nam, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Mexico, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Nigeria, Malaysia, Australia

Condition: New

Type: Tile Forming Machine

Tile Type: Colored Steel

Use: ROOF

Production Capacity: 0-20 m/min

Voltage: 380V 50Hz 3 Phase

Dimension(L*W*H): about 5.8*0.8*1.4 m

Weight: about T 1.2

Warranty: 2 years

Key Selling Points: Easy to Operate

Rolling thinckness: 0.3-0.8mm

Feeding width: 1220mm

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Marketing Type: New Product 2020

Warranty of core components: 2 years

Core Components: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, OTHER

Operation Language: English/Spanish/Chinese

Operate Style: Auto/Manual

Motor Brand: Japanese Simens

PLC Brand: Delta/MITSUBISHI/SIEMENS

Cutting Blade: Cr12Mov with quenched treatment

Profile: as customer's requirement

Color of Machine: blue, gray, or your required color

Life Time: at least 5 years

Raw Material: PPGI/Galvanized Sheet

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: Canada, United Kingdom, Viet Nam, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Nig

After-sales Service Provided: Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Zertifizierung: CE

Grundinformation

Zertifizierung: CE

Zahlung und Versand AGB

Packaging Details: a. Fit for ocean shipping. b. The main body of machine fixed to container by 8mm diameter steel wire. c. Rollers and shaft are covered with anti-rust oil. d. Spare parts in a carton box.

Supply Ability: 50 Set/Sets per Month

Produkt-Beschreibung

Product Description

Working Flow
Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand

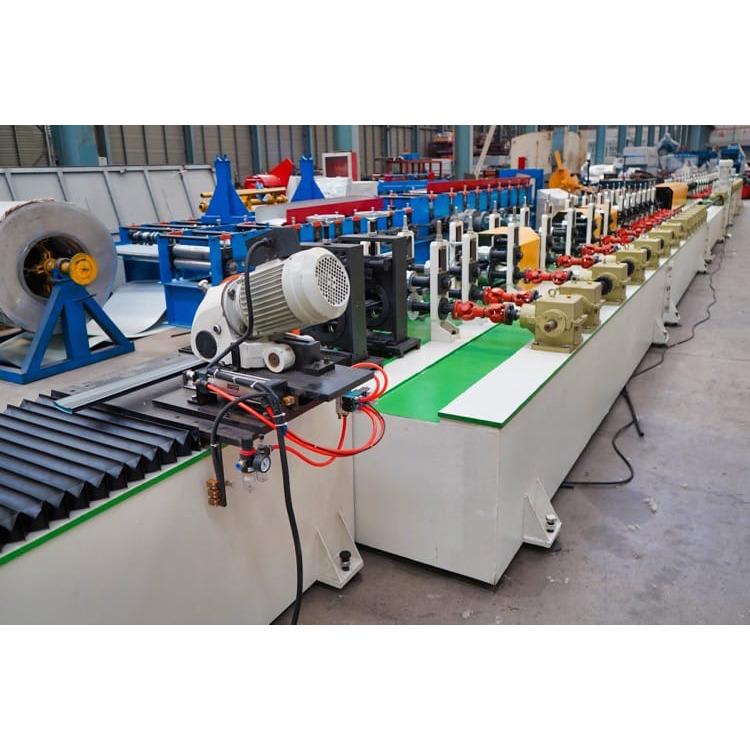

Name	PU roller shutter door roll forming machine
Suitable Material	Colored or galvanized steel coil, HRB60 or equivalent
Thickness Range	0.3-0.8 mm
Coil Width Range	According to your actual drawing.
Electric Power	according to your need.
Cutting	Automatically stop and cutting when it comes to the set length.
Length of the Sheet	You can set the length according to your need. It is controlled by PLC length accuracy: ±1mm.

Hot Products

Details Show

	Uncoiler Loading capacity: 5T Inner diameter: 470-530mm Steel coil width :914, 1000, 1220, 1250 mm.According to your actual drawing. Working speed: 0-15m/min, adjustable
Cutting system Material of blade :Cr12MOV, much better than normal Cr12 material Hydraulic power :3KW
	Feeding table It is used to control the width and position of the steel sheet. The sheet is quided into the machine with correct position ,to make sure the panel is neat and parallel
Forming rollers Material:High grade 45# steel. Roller stations :11-16 stations According to your actual drawing
	Main frame Material :350 H steel Feature:more table, no shaking

1. what is your guarantee period?

Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.

2. Do you provide training for my workers?

The machine has been installed and tested well before shipping. It is easy to operate.

Normally speaking, our customer follows the instruction book and can operate the machine well.?

You can also come to our factory to check the machine and learn how to operate before shipping. It only needs 2 hours and you can operate well.

3. I do not know about the machine and do not know how to install it. Can you install the machine in my factory?

If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food Salary of 80 USD per day per person (from departure from our factory, until we are back to our factory). You also need to take care of his safety.

4. What is included in the machine?

The process for work: decoiler→feeding→roll forming→measuring length→cutting to length→product to stand

The whole line includes a manual decoiler, roll forming machine and product stand. when you get the machine in your factory, you just need to do following 3 things, and then you can start working.

a. Put the machine on the flat level ground.

b. Inject gear oil and hydraulic oil.

c. Connect 3 phase electric wire.
