Startseite /Produkte/Purlin rollen ehemaliges/Building material shops steel frame c purlin roll forming machine c purlin making machine

Building material shops steel frame c purlin roll forming machine c purlin making machine

1 Set
MOQ
$18,500.00(1 - 4 Sets) $15,500.00(>=5 Sets)
Preis
Building material shops steel frame c purlin roll forming machine c purlin making machine
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Applicable Industries: Building Material Shops
Showroom Location: None
Condition: New
Type: Tile Forming Machine
Tile Type: Steel
Use: FLOOR
Production Capacity: 20-25m/min
Voltage: 380v50hz3ph
Dimension(L*W*H): 4.5*1.5*1.3M
Weight: 3.5 kg
Warranty: 1 Year
Key Selling Points: Easy to Operate
Rolling thinckness: 1-2mm
Feeding width: Other
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Motor, Pump, PLC
Name: Steel frame c purlin roll forming machine c purlin making machine
Raw material: Galvanized Sheet
Usage: Building
Cutting type: Automatic Hydraulic Cutting
Color: Custimized
Roller material: Cr15
Shaft material: Cr15
Thickness: 1-2mm
Cutter material: GB Cr12
Advantage: High Safety Factor
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Zertifizierung: iso9001
Grundinformation
Zertifizierung: iso9001
Zahlung und Versand AGB
Packaging Details: z steel roof purlin roll forming machine
Supply Ability: 20 Set/Sets per Month
Produkt-Beschreibung
Product Description

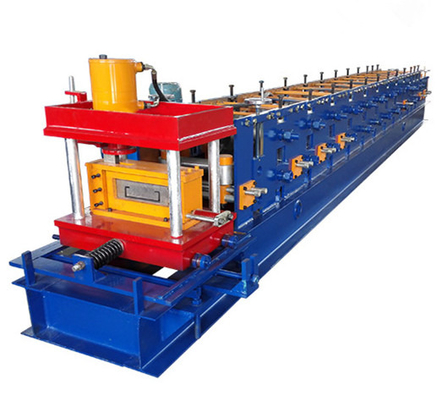

Steel frame c purlin roll forming machine c purlin making machine

We can produce all kinds of roll forming machines,We Choose the best material and components,  with 20 year’s experience.Now the machine working speed can reach 20m/min
Our main products: CZU purlin roll forming machine, deck floor roll forming machine,door series roll forming machine, cable tray roll forming machine, roof and wall roll forming machine, light steel roll forming machine, water channel roll forming machine,
glazed tile /ridge cap roll forming machine, highway guardrail roll forming machine, sandwich panel roll forming line, rack and fence roll forming machine and auxiliary equipments.
Detailed Images
MANUAL DECOILER

Inner diameter: 350-450mm
Outer diameter: 1500mm
Max coil width: 400mm
Capacity: 3ton
ROLL FORMING MACHINE WITH DIFFERNT SIZES
Forming steps: 12 steps
Roller material:  Cr15
Shaft material: GB 45# steel
Shaft diameter: 80mm
Working speed: 0-20m/min
Power motor: 7.5kw
Voltage: 380v-50hz-3phrase

CUTTING SYSTEM

Cutting type: Mold hydraulic cutting

Mold material: GB Cr12
Oil pump: 4kw
Cutting length: as required
Cutting error: +-1mm
CONTROL SYSTEM

Control: PLC
Brand: Delta
Language: English and Chinese
Function:Control cutting length, quantity, oil pump on/off
FAQ
1.How to get a quotation of  steel roll forming machine?
Give me the profile drawing and thickness for  channel steel ,this is the important. Other spicific requirements is welcome,such as the speed,power and voltage you want.
2. Terms of payment: 30% T/T, Balance to be paid before shipping after inspection.Also we accept the payment TT/ L/C, O/A , D/P.
3. How long the steel roll forming machine could be made? Normally speaking,  channel steel roll forming machine could be made without 45 working days. If you need roll forming machines in a hurry, we can make it for you less than a month.
4. What is your after-sale service?  channel steel roll forming machine's warranty period is 12months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.we supply the technical support for the whole life of the equipment. 5. You are trade company or factory? We are  factory. Building trade company is just for exporting various types of cold roll forming machines.
Certifications
Recommend Products
Product packaging
We provide shipping service for C Z shape Steel Purlin Roll Forming Machines C80-300
1. Machines need one 20/40 feet container to load .
2.We have professional technicians for loading to make sure machine has no damage.
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
Contact Us
Melissa (sales manager)
whatsapp:+8615733250758
24 hours aftersale service ! --------------------save your tile ,save your money.
